Drop In Grate

Our Drop In Grates make it easy to create a stylish statement in your home. Simply drop them into a hole in a slab made of any non-combustible material such as concrete, granite, or marble – much like a kitchen hob drops into the kitchen counter – to instantly upgrade your space.

It is essential for the grate to function properly that an adequate air supply is provided to the underside of the slab. To ensure this, all our Drop In Grates come with a louvre that can be incorporated into the brick structure to allow the necessary amount of air.

Airflow in a room reacts differently to a flame located against or near a rear wall, to a flame located in the middle of the room. Our Drop In Grates are designed to compensate for this. If you are installing a drop in unit with a wall at the rear of it, order a ‘single sided unit’; if the grate is to be installed away from any walls order a ‘double sided unit’.

Features

5

Available as standard in 880, 1100, 1400 or 2000mm sizes

5

Available as specials with variable length & depth

5

Available in black or brushed stainless steel

5

Black unit is supplied with natural white stones to enable you to cover the grate in stones if so desired

5

Grates can be fitted flush with slab surface or recessed into it to achieve different looks

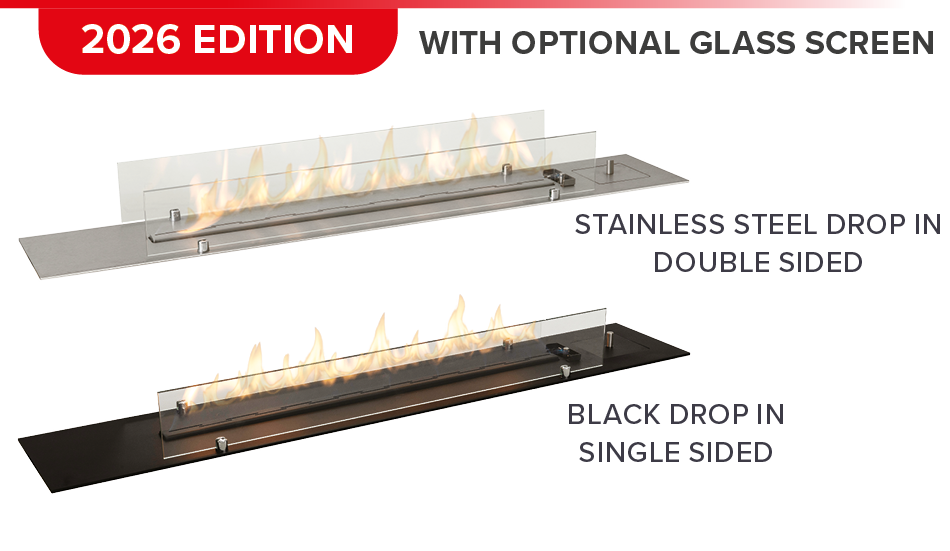

Styling Choices

Black Drop In

Stainless Steel Drop In

Black Drop In
(Stones over Flame)

Black Drop In
(Stones around Flame)

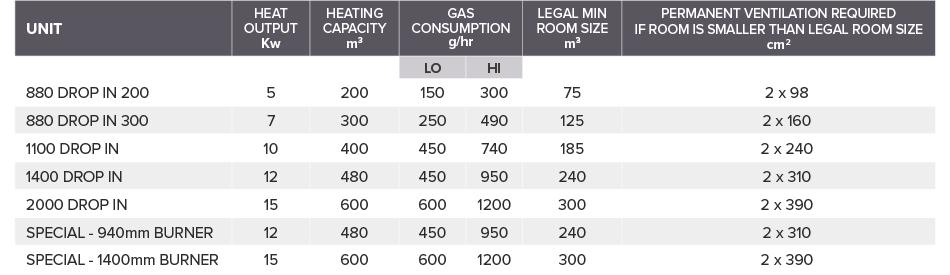

Ventilation Requirements

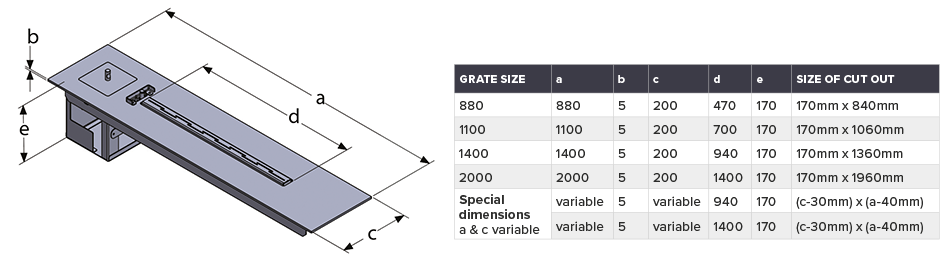

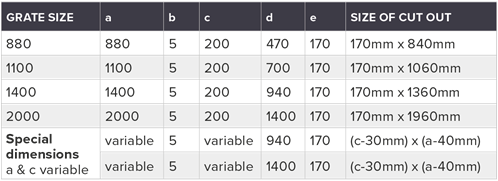

Technical Specifications
